Bioretention: Streetscapes

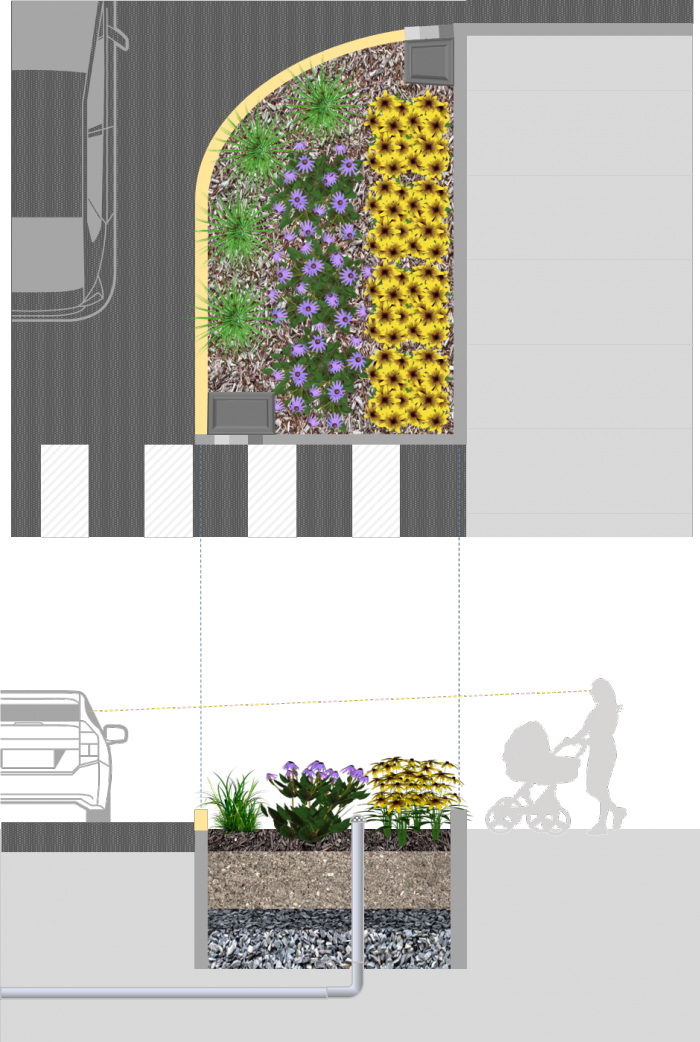

This is an image map of a curb extension, clicking on components will load the appropriate article.

Hydraulically separated or connected with an underdrain, these are often quite small units of 5 - 50 m² each. In urban settings the bioretention may be bounded entirely with hardscape, restricting options for pretreatment and sheet flow. Amenity and safety can be enhanced on sidewalks with a short (~ 45 cm wall) for seating, although the finished grade is usually only slightly lower than surroundings. Where underground space permits, shade trees are common feature of these facilities, enhancing the streetscape experience and optimizing transpiration. This type of bioretention is often designed offline, with bypass overflow.

An excellent opportunity for integrating more bioretention into the street is through careful design of curb extensions for traffic control. See Roadside safety for design advice specific to this application.

Gallery

•

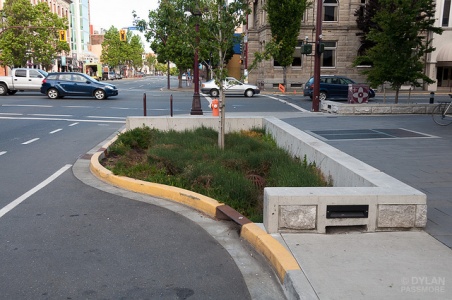

  Curb extension in Victoria. Image credit Dylan Passmore

•

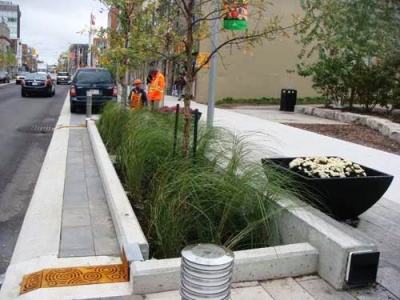

  'Offline' streetscape bioretention with trees, King Street, Kitchener

•

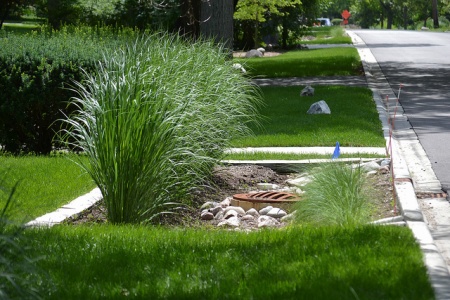

  Bioretention on residential street, with covered drain inlet (grate in the gutter) and iron grate covered overflow in the centre of the cell, Hinsdale, IL Photo credit: CNT

•

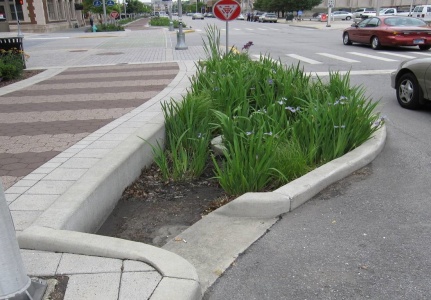

  Curb extension in downtown Indianapolis, IN

•

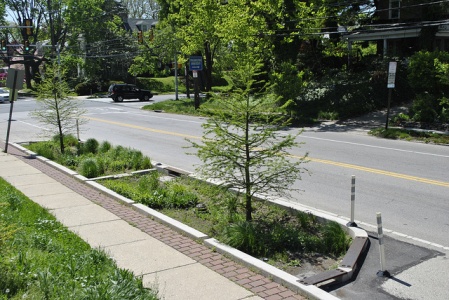

  Curb extension on Queen Lane, in Philidelphia
  Photo credit: PWD

•

  Rainwater harvesting cistern, which discharges to tree pits during dry conditions. Image credit Mississippi WMO

•

  Extended tree pit planting in USA
  Photo credit: USEPA

•

  A right of way bioswale installed by the New York City Department of Environmental Protection on Dean Street, Brooklyn
